온도소자 모델명: Flat Film Detector

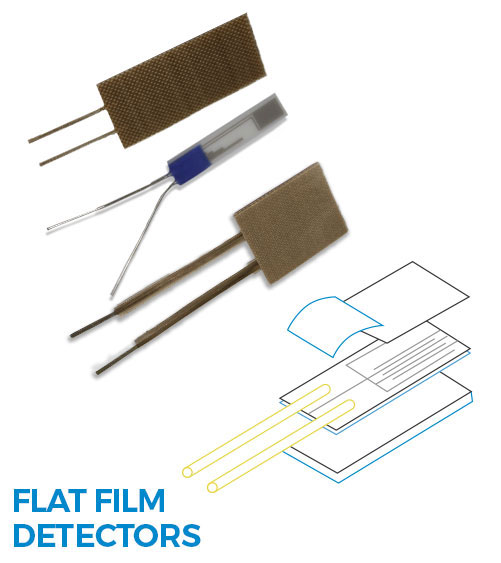

► Flat-film Pt100 Temperature Detectors
We supply flat-film detectors in a wide range of sizes and tolerances to suit the application. Our standard range of detectors are manufactured with platinum-coated nickel lead wires that offer a temperature range from -70 °C to 500 °C available to IEC751 with tolerance bands Class B, Class A and 1/3DIN.
Extremely versatile, flat-film sensors are relatively cheap to manufacture and are commonly used in general-purpose applications, such as household goods, where a fast response to temperature changes is required. As a rule, flat-film sensors are less stable and have a lower temperature range than wire-wound detectors.
견적문의
World-leading Manufacturer of Temperature Sensors
Flat-film and flat-wire-wound temperature detectors are available in various sizes to suit the application.
This film is then coated with an epoxy or glass that helps protect the deposited film and also acts as a strain relief for the external lead wires.
NEED ADVICE?
Talk to a Technician
Our highly experienced technicians can advise you on the best approaches for the most demanding of applications.
GET IN TOUCH CALIBRATION SERVICE
Flat Film Detector Range
Detectors are manufactured to meet all of the recognised International standards.
Sensor Element Type |
Nominal Size mm |
PT100 |
PT500 |
PT1000 |
Platinum coated Nickel leads
|
9.5 x 1.9 |
B, A, 1/3B |
|
B, A, 1/3B |
3.9 x 2.1 |
B, A, 1/3B |
B, A, 1/3B |
B, A, 1/3B |
|
3.9 x 1.5 |
B, A, 1/3B |
|
|
|
3.7 x 0.9 |
B |
|
|
|
3.0 x 1.0 |
B, A |
|
B, A |
|
2.3 x 2.1 |
B, A, 1/3B |
B, A |
B, A, 1/3B |
|
1.7 x 1.25 |
B, A, 1/3B |
|
|
