The CBP-PROC3 CalBench is a package for testing and calibrating pressure, process, and temperature instrumentation. It is suitable for users that require a workstation that is easy to operate manually, but can also perform software driven calibration applications. This makes it an ideal solution for all skill levels, from technicians learning calibration, to experienced test engineers.

The 8060+ module situates centrally in the console, providing source, simulation and measurement of process signals, HART communication and 24 V loop power. It features an integral multimeter, and a PC control centre with 12.1" touch screen display. Both manual control and EasyCal software driven calibration can be performed. EasyCal communicates with pressure modules and dry block calibrators.

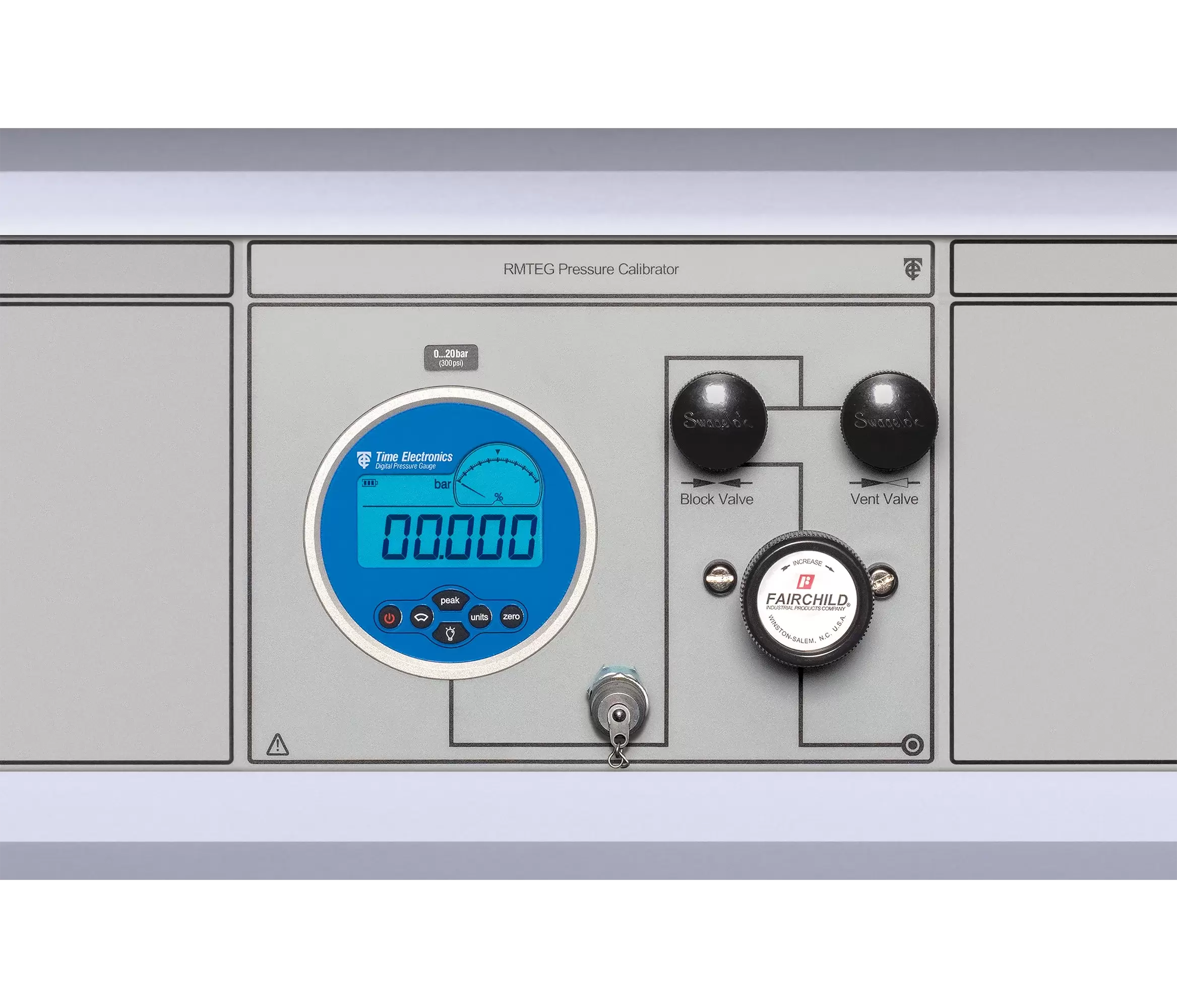

For pressure calibration, high accuracy digital gauge modules feature. For pneumatic workload two gauge modules have regulators for output adjustment and setting. For higher pressures gauge only modules are used with supplied pumps.

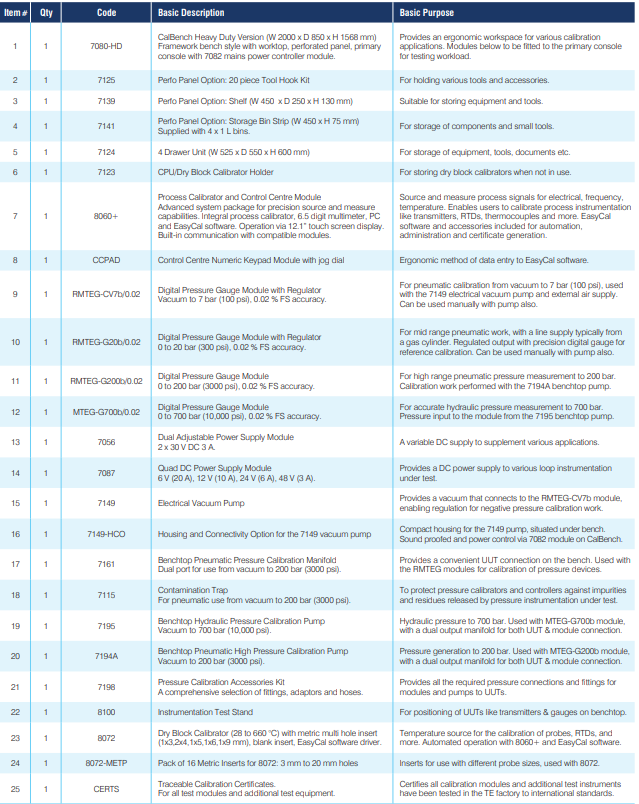

The package has various extras to aid applications and complete the workspace. These include on-bench storage with drawers, holders, perfo panel hooks and shelves. Calibration accessories include pumps, manifold, adaptors/fittings kit, and test stand.
